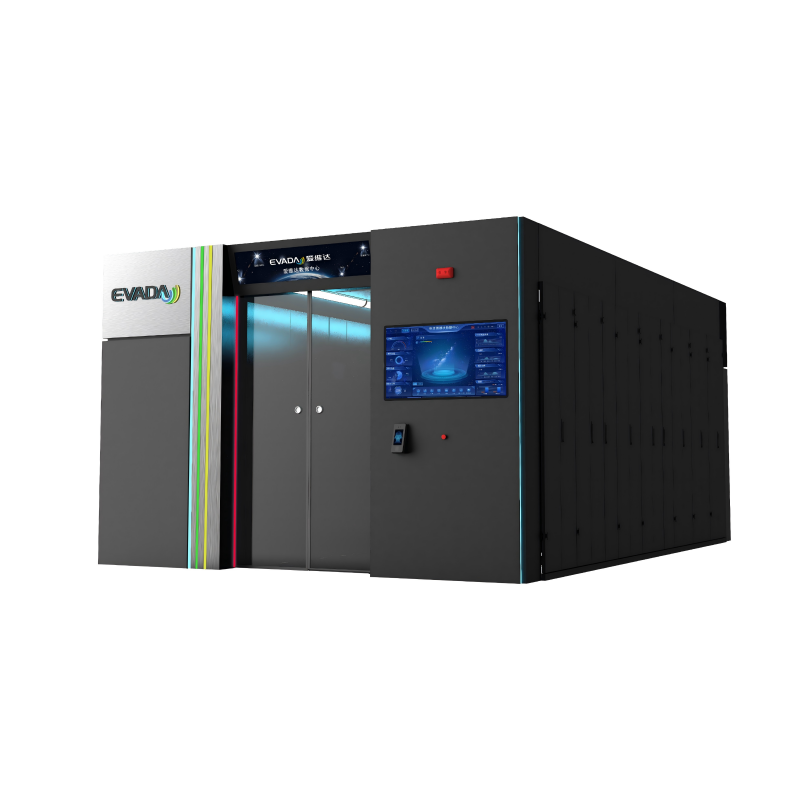

ABOUT DIMENSION META SCALABLE GREEN DATACENTER
With the rapid development of AI technologies, data centers have become essential infrastructure to support growing computing power demands. The increasing requirements for performance, scalability, and energy efficiency pose new challenges to traditional data center architectures. Micro-modular data centers address these challenges by simplifying system architecture through integrated and modular design, enabling fast deployment, flexible expansion, reduced construction costs, and shorter implementation cycles. They effectively improve efficiency under varying load conditions while enhancing manageability and reducing overall energy consumption.
The Dimension Series Micro-Modular Data Center is EVADA’s next-generation data center infrastructure solution, developed under the philosophy of “making power more reliable and more efficient.” Built on EVADA’s extensive industry experience and R&D capabilities, the solution ensures high reliability and safety, while maintaining consistency in appearance, interfaces, and communication protocols. It delivers an energy-efficient, intelligent, and flexible infrastructure platform for modern data centers.
FEATURES
Simple
Fast on-site installation
Flexible deployment
Shortened delivery cycle
Standard
Modular component design
Factory-standardized prefabrication
Scalable on demand
Intelligent
AI optimization
Fault localization & alarm
Operations & maintenance visualization
AI-guided rack deployment
Economical
Low initial investment cost
High-efficiency design
Eco-friendly
◆OTHER
Fluorine pump cooling + AI optimization, PUE as low as 1.16, annual energy costs reduced by 25%+
Standardize data center infrastructure solutions, enabling efficient matching and promoting system reliability
Capacity: 20-300kVA, support online expansion
The number of power modules based on power demand
SPECIFICATION
System | Description |
Features | |
W*H*L | 3600mm*2620mm*<15m (custom options available upon request) |
Number of rack units per module | Dual-row racks: ≤48 U; Single-row racks: ≤24U |
Reliability level | Tier II or Tier II above |
Working environment | -30℃~+45℃ |
Altitude | ≤1000m, derating applies according to relevant standards |
Installation | Floor-mounted installation, compatible with both anti-static and regular flooring |
Cabinet | |
W*D*H | 600/800mm*1200mm*2000mm (custom options available upon request) |
Available space | 42U |
Perforation rate | >75% |
Static load capacity | ≥1800kg |
Seismic rating | 8-9 intensity |
Closed channel | |
Skylight | Tilting skylight, functional skylight, fixed skylight (custom options available upon request) |
Door | Rotating sliding door, manual/automatic sliding door (compatible with multiple styles) |
Wireway | Adjustable channels for power, low-voltage, and fiber |
Light | Ambient light linked to alarms and sensor-activated LED lights |
Seismic rating | 8-9 intensity |
UPS | |
Input rated voltage | 380/400/415Vac, 50/60Hz, 3Ph+N+PE |
Input power factor | ≥0.99 |
Output power factor | 1.0 |
Rated capacity | 20~300kVA, support online expansion |
System efficiency | ≥96% |
Working condition | Online modular UPS(supports hot-swappable maintenance) |
Protection class | IP20 |
Distribution system | |
Input voltage | 380/400/415Vac, 50/60Hz, 3Ph+N+PE |
Rated capacity | 16~630A |
Input method | Single/Dual |
Switch category | UPS input/output switch, air conditioner switch, output bypass switch (subject to specific requirements) |
Others | Class C lightning protection, 10-inch touchscreen, supports RS485 remote monitoring |
AC system | |
Cooling capacity | Inter-row: 12.5kW/25kW/40kW/50kW/60kW |
W*D*H | 300/600mm*1200mm*2000mm |
Cooling method | Air-cooled/ chilled water (fluorine pump cooling optional) |
Input power | 3 phase 380Vac, 50Hz |
Monitor | |
Environment monitor | Air conditioning, temperature & humidity, smoke detection, access control, camera, water leakage, etc. |
Power monitor | UPS power supply, batteries, and distribution cabinets |
Others | 43-inch touchscreen; 2D/3D display; skylight fire-linkage; AI cooling and power optimization linkage; AI-guided rack deployment; smart image capture; optional: voice interaction, automatic skylight reset, U space management |
